Genelec elevates German Football Museum’s sensory experience with multi-zone audio

The “In Motion – Art & Football” exhibition at Dortmund’s German Football Museum celebrates football through the medium of great art, featuring works from iconic 20th-century artists from around the world. Deploying high-powered projectors, LED displays and an audio system with 25 Genelec Smart IP networked loudspeakers, the exhibition provides a richly immersive visitor experience.

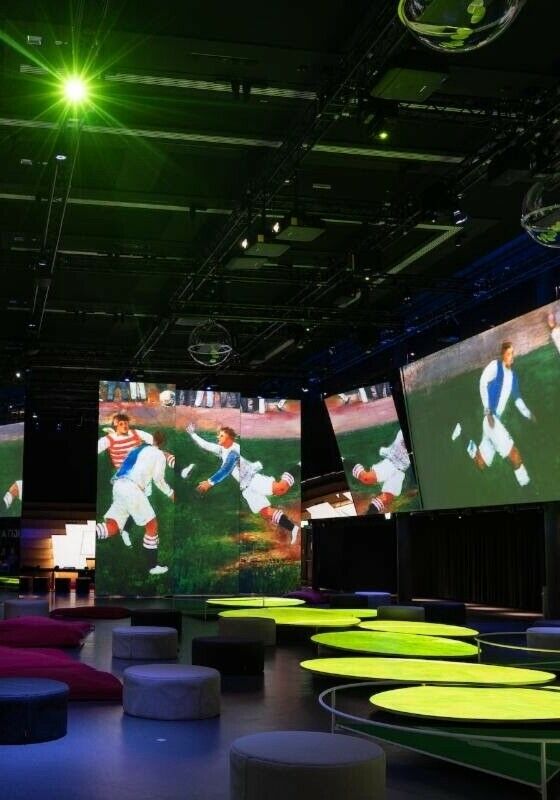

23 UHD Epson projectors animate dynamic surfaces, complemented by film, photography and sound. Visitors move through three distinct zones, encountering features such as a 22-metre “Painter’s Palette” floor projection and a 5.1 x 4.2-metre projected sketchbook. German integrators SIGMA System Audio-Visual were tasked with the complex AV design and installation.

“We’ve worked with the German Football Museum for over ten years,” explained Christian Backes, SIGMA’s head of AV-integration. “We provided the original AV and media systems. This is a long-term exhibition, but importantly, it’s designed so that when they choose a new theme, only the content needs changing – the core technology remains.”

A multi-layered audio system was essential to support the large space and numerous displays. Berlin-based LEM Studios and PBX Studios were responsible for the sound design and audio content production.

Markus ‘Hossi’ Hossack of LEM Studios served as lead sound designer, mixing audio in both the studio and onsite. Starting from a stereo soundtrack, Hossack worked to adapt it into a rich, immersive soundscape. “The idea was to get the whole place shaking,” he explained.

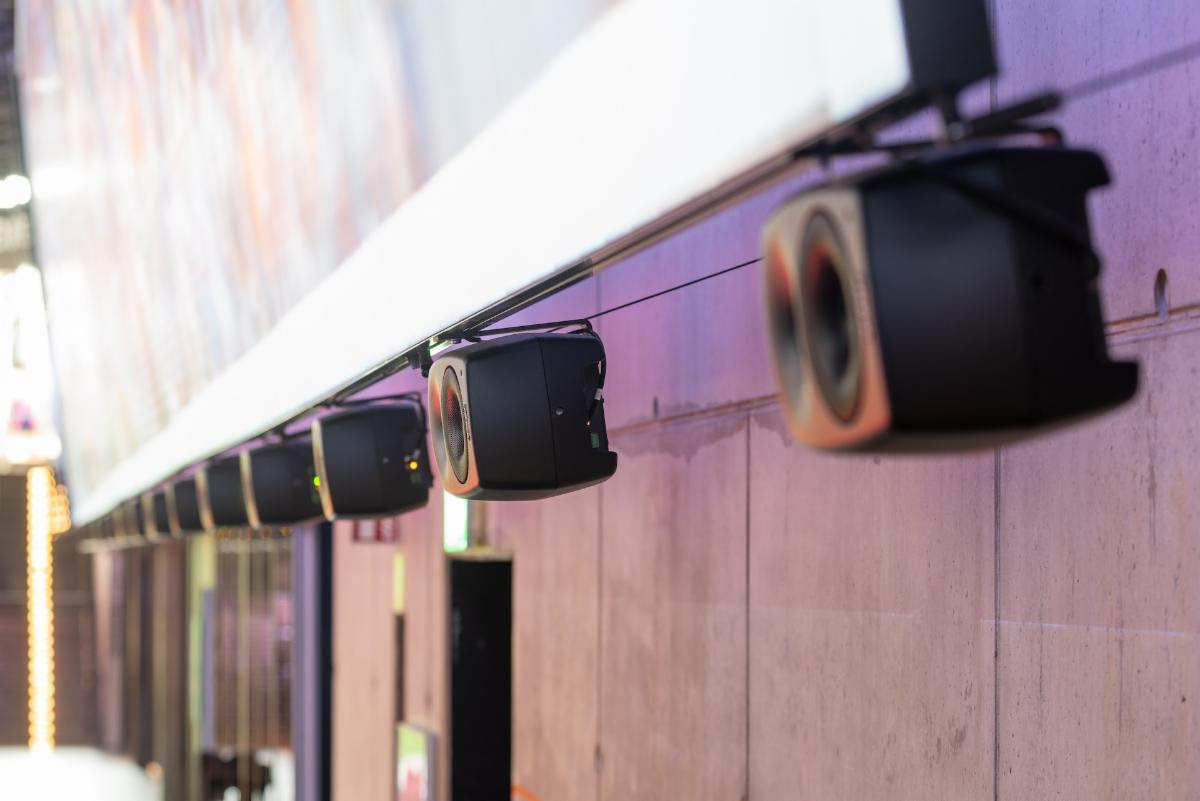

A powerful in-ceiling system provided full-range audio across the venue, but for immersive playback, the sound had to be more intimate. “For the immersive details the sound needed to get ‘up close and personal’ to the visitors,” said Hossack. To achieve this, 25 Genelec 4430A Smart IP loudspeakers were installed discreetly beneath the two large lateral projection walls, each 17.5m by 26.5m. The 4430s played individual audio elements, creating a spatialised mix where different speakers delivered different content depending on where visitors stood.

At one point in the show, classical waltz music filled the room via the ceiling system, while the Genelecs played isolated instrument parts. Subtle sound effects like footsteps, pencil sketches and raindrops were also localised to match visuals. “We wanted to create a ‘walkable cinema’,” said Hossack. “We wanted to contain the sound in different zones of audio, giving each visitor a unique listening experience.”

“In the studio we mixed in Dolby Atmos and were able to prepare everything in 7.1.4,” he continued. “However, in the venue this had to be scaled up to incorporate all 50 loudspeakers. Managing the timing, routing and synchronisation was a real challenge, and we only had four days to put everything together,” he added. “It was tight!”

Genelec’s Smart IP Manager software proved invaluable. “Given the short deadline, it was essential to work quickly, and Smart IP Manager enabled me to handle any filtering I wanted to do, as well as adding latency to each loudspeaker,” said Hossack. “We took the middle of the show as our zero and worked out from there to maintain the immersive effect, adjusting for latency as we went.”

The Smart IP system’s network connectivity was crucial, with audio, power, and management all carried on a single CAT cable. Hossack and LEM Studios had previously worked on a Marvel exhibition using 70 Genelec Smart IP speakers. “We raised the audio budget for that project significantly,” said Hossack. “But the scalability, sound quality and quick installation make it worth the cost.

“We are delighted with the Genelec equipment in our own studio,” Hossack continued. "The audio information is precise, and the translation from one space to another works perfectly. We have a Smart IP setup in the studio as well as Genelec studio loudspeakers, and once onsite we didn’t have to retune anything – everything sounded exactly as it did in the studio."
